Tillers

HUSQVARNA TF 545P




110 cm
Working width
270 cm³
Cylinder displacement
5 kW
Net power at preset rpm Energy1

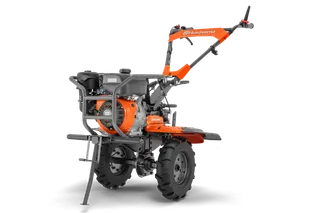

TF 545P

A tough, powerful tiller that gives you reliability, efficiency and long-lasting Husqvarna durability. Easy-starting petrol engine with oil bath air filter ensures long service life, even when used in dry, dusty environments – while the fully sealed transmission (with direct clutch, two forward speeds and one reverse) means it’s also perfectly suited to the wet. A wide range of useful accessories connected via the AUX PTO make it a truly versatile machine.
Features
Specifications
Compare specifications and features with similar Husqvarna products.
Compare

TF545P PETROL TILLER

Art no: 967 63 93‑02

Engine
TF545P PETROL TILLER
Art no: 967 63 93‑02
Engine nameHusqvarna Engine
Net power at preset rpm Energy1
5 kW
Net power at preset rpm3 600 rpm
Air filter typePaper
Fuel tank volume6 l
Power/fuel typePetrol
Cylinder displacement270 cm³
Emission
Exhaust emissions (CO₂ EU V)2
610 g/kWh
Equipment
Rubber wheelsIncluded
Transport wheel/sNot available
Foldable handlebarYes
Horizontally adjustable handlebarYes
Vertically adjustable handlebarYes
Capacity
Working width110 cm
Working depth30 cm
Tine diameter360 mm
Number of tines8
Rotational speed (min/max) min63 rpm
Rotational speed (min/max) max145 rpm
Cultivator typeFront-tine
Transmission
Transmission typeDirect Clutch
Transmission steps reverse2
Transmission steps forward4
Dimensions
Weight (complete product w/o side packed articles)113 kg
Services
Owner support
Manuals, handbooks, spare parts, guides, and related information for TF 545P can be found in the product support.
Product support for TF 545P
Disclaimer:
  • 1Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
  • 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
