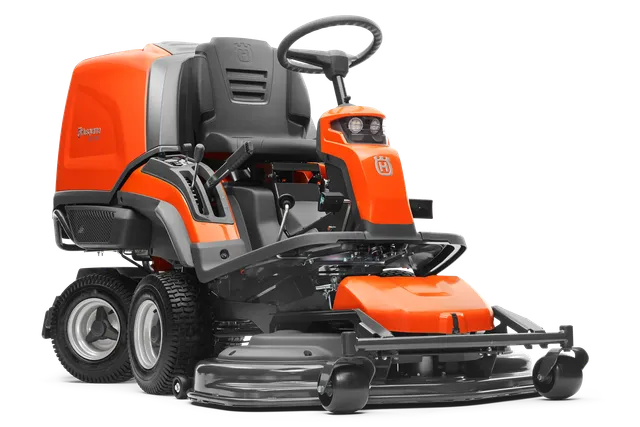

Parts, manuals and support for RC 318T
All the support you need for RC 318T. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.
Support content
Manuals & Documents(1)
Manuals & Documents
(1)
Showing the latest version of manual and documents for RC 318T. For earlier versions, see link below to search all manuals & documents..
Accessories(14)
Accessories
(14)
All accessories for RC 318T.
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
RC 318T Rider Collection (2017-) Art no: 967 62 87‑01 | |
|---|---|
| Cutting deck | RC 318T Rider Collection (2017-) Art no: 967 62 87‑01 |
| Uncut circle | 60 cm |
| Cutting width, min | 103 cm |
| Cutting width, max | 112 cm |
| Cutting height min | 25 mm |
| Cutting height max | 75 mm |
| Blade engagement | Automatic |
| Collector volume | 300 l |
| Engine | |
| Power/fuel type | Petrol |
| Net power at preset rpm Energy | 12,6 kW |
| Motor/engine manufacturer | Briggs & Stratton |
| Engine name | Endurance Series |
| Cylinder displacement | 656 cm³ |
| Cylinders | 2 |
| Engine cooling | Air |
| Engine lubrication type | Full pressure |
| Oil filter | Yes |
| Dimensions | |
| Tyre dimensions, front | 16x6,5-8 |
| Tyre dimensions, rear | 16x6,5-8 |
| Wheelbase | 90,3 cm |
| Ground clearance | 95 mm |
| Base machine, length | 208,9 cm |
| Base machine, width | 103 cm |
| Base machine, height | 128,4 cm |
| Weight (excl. cutting equipment) | 326 kg |
| Vibration | |
| Vibration level steering wheel | 2,4 m/s² |
| Vibration level seat | 0,5 m/s² |
| Drive system | |
| Transmission type | Hydrostatic |
| Drive method | Dual pedal-operation |
| Speed forward max | 8 km/h |
| Speed reverse max | 4,3 mph |
| Speed reverse max | 7 km/h |
| Battery | |
| Battery capacity | 5,5 Ah |
| Battery type | Li-Ion |
| Battery pack weight | 1,1 kg |
| Battery manufacturer | BMZ |
| Equipment | |
| Seat suspension | Yes |
| Hour meter type | Digital |
| Seat material | PU |
| Seat back height | High |
| Foldable seat | Yes |
| Parking brake, type | Disc |
| Sound and noise | |
| Sound pressure level at operators ear | 85 dB(A) |
| Sound power level, guaranteed (LWA) | 100 dB(A) |
| Sound power level, measured | 99 dB(A) |
| Emission | |
Exhaust emissions (CO₂ EU V) | 830 g/kWh |
