Parts, manuals and support for K 770 SmartGuard
All the support you need for K 770 SmartGuard. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.
Support content
Manuals & Documents(1)
Manuals & Documents
(1)
Showing the latest version of manual and documents for K 770 SmartGuard. For earlier versions, see link below to search all manuals & documents..
Accessories(4)
Accessories
(4)
All accessories for K 770 SmartGuard.
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications

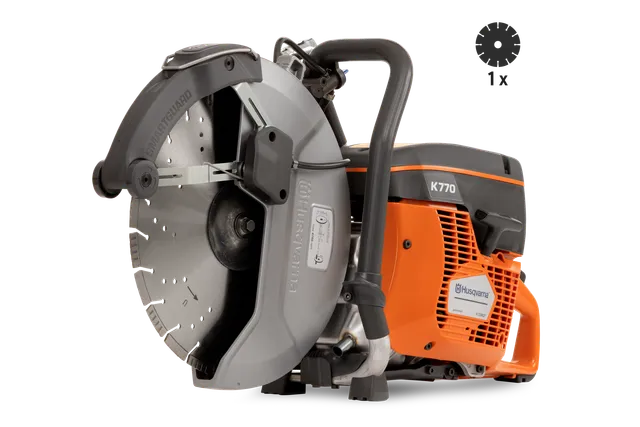

POWER CUTTER K 770 SmartGuard 14" Art no: 970 46 00‑01 | |
|---|---|
| Engine | POWER CUTTER K 770 SmartGuard 14" Art no: 970 46 00‑01 |
| Output power | 3,7 kW |
| Cylinder displacement | 73,5 cm³ |
| Electrode gap | 0,5 mm |
| Cylinders | 1 |
| Number of strokes | 2-stroke engine |
| Cutting System | |
| Blade diameter, max | 350 mm |
| Arbor diameter | 25.4/20 mm |
| Blade thickness, max | 5 mm |
| Peripheral speed, max | 90 m/s |
| Dimensions | |
| Product size length | 769 mm |
| Product size width | 225 mm |
| Product size height | 429 mm |
| Weight (complete product w/o side packed articles) | 11,1 kg |
| Cutting deck | |
| Cutting depth, max | 125 mm |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 115 dB(A) |
| Sound pressure level at operators ear | 101 dB(A) |
| Emission | |
Exhaust emissions (CO₂ EU V) | 711 g/kWh |
| Vibration | |
| Vibrations left/front handle | 2,1 m/s² |
| Vibrations right/rear handle | 2 m/s² |
