Specifications
Specifications

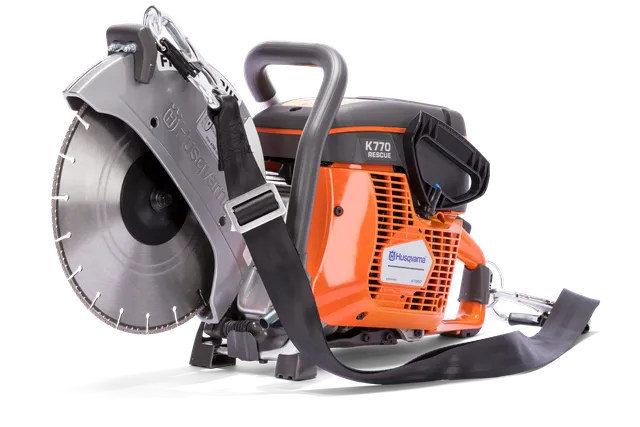

POWER CUTTER K 770 Rescue Rescue | 12" | 0,8" Art no: 967 80 91‑01 | |
|---|---|
| Engine | POWER CUTTER K 770 Rescue Rescue | 12" | 0,8" Art no: 967 80 91‑01 |
| Output power | 3,7 kW |
| Cylinder displacement | 73,5 cm³ |
| Electrode gap | 0,5 mm |
| Cylinders | 1 |
| Number of strokes | 2-stroke engine |
| Cutting System | |
| Blade diameter, max | 300 mm |
| Arbor diameter | 20 mm |
| Blade thickness, max | 5 mm |
| Peripheral speed, max | 80 m/s |
| Dimensions | |
| Product size length | 618 mm |
| Product size width | 221 mm |
| Product size height | 391 mm |
| Weight (complete product w/o side packed articles) | 10 kg |
| Cutting deck | |
| Cutting depth, max | 100 mm |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 115 dB(A) |
| Sound pressure level at operators ear | 101 dB(A) |
| Emission | |
Exhaust emissions (CO₂ EU V) | 711 g/kWh |
| Vibration | |
| Vibrations left/front handle | 2,1 m/s² |
| Vibrations right/rear handle | 2,3 m/s² |
