Parts, manuals and support for K 760 Cut-n-Break
All the support you need for K 760 Cut-n-Break. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.
Support content
Manuals & Documents(1)
Manuals & Documents
(1)
Showing the latest version of manual and documents for K 760 Cut-n-Break. For earlier versions, see link below to search all manuals & documents..
Accessories(6)
Accessories
(6)
All accessories for K 760 Cut-n-Break.
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications

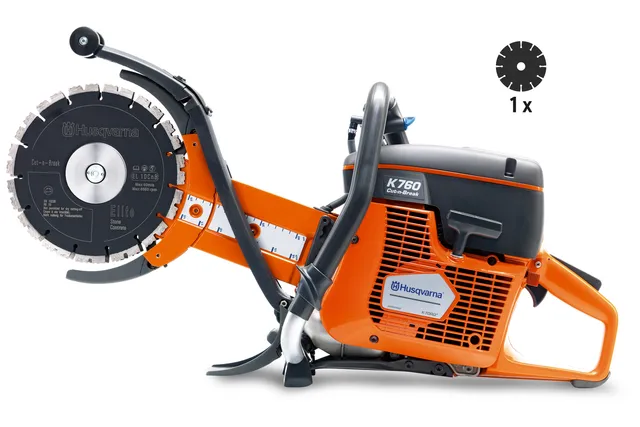

POWER CUTTER K 760 CnB 230 mm | EL35 Art no: 967 19 57‑01 | |
|---|---|
| Engine | POWER CUTTER K 760 CnB 230 mm | EL35 Art no: 967 19 57‑01 |
| Output power | 3,7 kW |
| Cylinder displacement | 73,5 cm³ |
| Electrode gap | 0,5 mm |
| Cylinders | 1 |
| Number of strokes | 2-stroke engine |
| Cutting System | |
| Blade diameter, max | 230 mm |
| Peripheral speed, max | 80 m/s |
| Dimensions | |
| Product size length | 798 mm |
| Product size width | 246 mm |
| Product size height | 446 mm |
| Weight (complete product w/o side packed articles) | 9,6 kg |
| Cutting deck | |
| Cutting depth, max | 400 mm |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 115 dB(A) |
| Sound pressure level at operators ear | 101 dB(A) |
| Emission | |
Exhaust emissions (CO₂ EU V) | 711 g/kWh |
| Vibration | |
| Vibrations left/front handle | 1,9 m/s² |
| Vibrations right/rear handle | 2,8 m/s² |
