Power Cutters
Parts, manuals and support for K 1270 Rail
All the support you need for K 1270 Rail. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
Article
Art. number
Support content
Manuals & Documents
(2)
Manuals & Documents
(2)
Showing the latest version of manual and documents for K 1270 Rail. For earlier versions, see link below to search all manuals & documents..
Accessories
(5)
Accessories
(5)
All accessories for K 1270 Rail.
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications

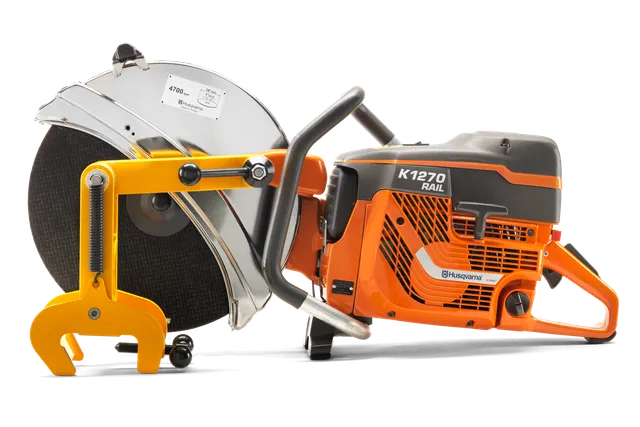

K 1270 Rail, incl. RA 10, blade guard 350 mm, bore 25.4 mm Art no: 967 04 63‑01 | |
|---|---|
| Engine | K 1270 Rail, incl. RA 10, blade guard 350 mm, bore 25.4 mm Art no: 967 04 63‑01 |
Output power | 5,8 kW |
Cylinder displacement | 118,8 cm³ |
Electrode gap | 0,5 mm |
Cylinders | 1 |
Number of strokes | 2-stroke engine |
| Cutting System | |
Blade diameter, max | 350 mm |
Arbor diameter | 25,4 mm |
Blade thickness, max | 5 mm |
Peripheral speed, max | 90 m/s |
| Dimensions | |
Product size length | 730 mm |
Product size width | 243 mm |
Product size height | 430 mm |
Weight (complete product w/o side packed articles) | 20,5 kg |
| Cutting deck | |
Cutting depth, max | 118 mm |
| Sound and noise | |
Sound power level, guaranteed (LWA) | 117 dB(A) |
Sound pressure level at operators ear | 104 dB(A) |
| Emission | |
Exhaust emissions (CO₂ EU V) | 726 g/kWh |
| Vibration | |
Vibrations left/front handle | 6,1 m/s² |
Vibrations right/rear handle | 5,8 m/s² |
