Grass Trimmers

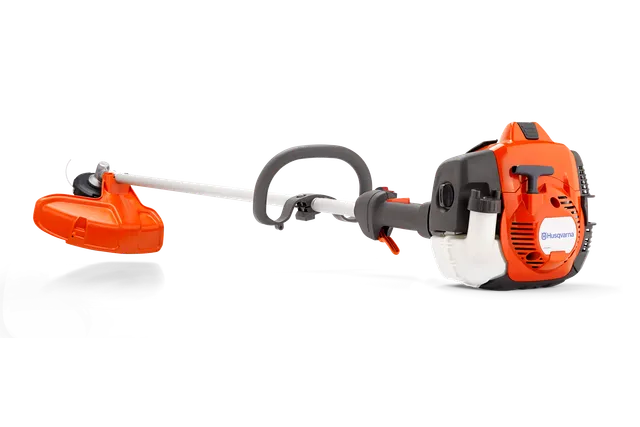

Parts, manuals and support for 525L
All the support you need for 525L. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
Article
Art. number
Support content
Manuals & Documents
(4)
Manuals & Documents
(4)
Showing the latest version of manual and documents for 525L. For earlier versions, see link below to search all manuals & documents..
Accessories
(3)
Accessories
(3)
All accessories for 525L.
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
US50/Can/AU/NZ, T35 Art no: 966 78 17‑01 | |
|---|---|
| Capacity | US50/Can/AU/NZ, T35 Art no: 966 78 17‑01 |
Cutting width | 46 cm |
| Engine | |
Output shaft power | 1 kW |
Cylinder displacement | 25,4 cm³ |
Maximum rpm output shaft | 6 500 rpm |
Fuel tank volume | 17,25 fl oz |
Fuel tank volume | 0,51 l |
| Dimensions | |
Weight (excl. cutting equipment) | 4,4 kg |
Tube diameter | 24 mm |
Product size length | 178,9 cm |
| Equipment | |
Gear ratio | 19 |
Drive gear angle | 30 ° |
Harness | Not included |
Saw blade | Not included |
Trimmer head | T35 M10 |
Grass blade | Not included |
| Sound and noise | |
Sound power level, guaranteed (LWA) | 107 dB(A) |
Sound pressure level at operators ear | 98 dB(A) |
