Hedge Trimmers

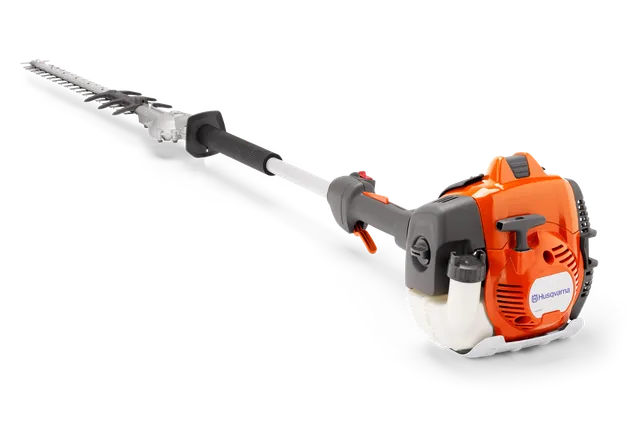

Parts, manuals and support for 525HF3S
All the support you need for 525HF3S. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.
Spare parts
Choose the part you wish to repair
Article
Art. number
Support content
Manuals & Documents
(3)
Manuals & Documents
(3)
Showing the latest version of manual and documents for 525HF3S. For earlier versions, see link below to search all manuals & documents..
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
All except US/CAN Art no: 967 14 74‑01 | |
|---|---|
| Engine | All except US/CAN Art no: 967 14 74‑01 |
Cylinder displacement | 25,4 cm³ |
Output shaft power | 0,9 kW |
Fuel consumption | 395 g/kWh |
Fuel tank volume | 0,51 l |
Maximum power speed | 8 500 rpm |
| Dimensions | |
Length, transportation mode - metric | 192 cm |
Weight (complete product w/o side packed articles) | 6,1 kg |
| Equipment | |
Knife length | 65 cm |
Teeth opening | 30 mm |
| Emission | |
Exhaust emissions (CO₂ EU V) | 1 141 g/kWh |
| Vibration | |
Equivalent vibration level (ahv, eq) rear handle | 2,9 m/s² |
Equivalent vibration level (ahv, eq) front handle | 3,9 m/s² |
| Sound and noise | |
Sound power level, guaranteed (LWA) | 105 dB(A) |
Sound pressure level at operators ear | 92 dB(A) |
| Control | |
Connectivity | Not applicable |
| Capacity | |
Cutting speed | 4 339 cut/min |
