Blade diameter, max
Cutting depth, max
Output power1
Product variant

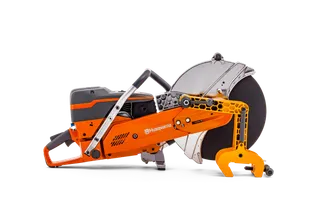

K 1270 Rail II
Features
Easy to start
Easy to start
Anti-vibration system
Anti-vibration system
Perfect right-angle cuts
Cutting from both sides
Cutting from both sides
Fast, stable mounting
Fast, stable mounting of the attachment onto the track.
Superior power with low emissions
Superior power with low emissions
Reduced wear
Reduced wear thanks to the drive belt with fully sealed transmission, which keeps out the cutting dust.
Maintenance-free air filter
The only time the filter needs to be checked and changed is if you experience lack of power.
Active Air Filtration™
Our two-step filtration system with centrifugal cleaning and a single paper filter increases product life and extends service intervals.
SmartCarb™
Our built-in automatic filter compensation maintains high power during the air filter life time.
Poly-V belt
Provides better transmission of power, less frequent re-tensioning and extended service intervals.
Wet cutting kit
Less slurry and low water consumption thanks to the progressive water valve, this adjusts the water volume to the exact amount needed.
Specifications
POWER CUTTER K 1270 Rail 16" | 1" | RA10 Art no: 967 98 23‑01 | ||
|---|---|---|
| Engine | POWER CUTTER K 1270 Rail 16" | 1" | RA10 Art no: 967 98 23‑01 | POWER CUTTER K 1270 Rail 16" | 1" | RA10S Art no: 967 98 24‑01 |
Output power1 | 5,8 kW | 5,8 kW |
| Cylinder displacement | 118,8 cm³ | 118,8 cm³ |
| Electrode gap | 0,5 mm | 0,5 mm |
| Cylinders | 1 | 1 |
| Number of strokes | 2-stroke engine | 2-stroke engine |
| Cutting deck | ||
| Cutting depth, max | 145 mm | 145 mm |
| Emission | ||
Exhaust emissions (CO₂ EU V)2 | 726 g/kWh | 726 g/kWh |
| Cutting System | ||
| Blade diameter, max | 400 mm | 400 mm |
| Arbor diameter | 25,4 mm | 25,4 mm |
| Blade thickness, max | 5 mm | 5 mm |
| Peripheral speed, max | 90 m/s | 90 m/s |
| Dimensions | ||
| Product size length | 771 mm | 771 mm |
| Product size width | 241 mm | 241 mm |
| Product size height | 476 mm | 476 mm |
| Weight (complete product w/o side packed articles) | 16 kg | 16 kg |
| Sound and noise | ||
| Sound power level, guaranteed (LWA) | 117 dB(A) | 117 dB(A) |
| Sound pressure level at operators ear | 104 dB(A) | 104 dB(A) |
| Vibration | ||
| Vibrations left/front handle | 4,4 m/s² | 4,4 m/s² |
| Vibrations right/rear handle | 3,9 m/s² | 3,9 m/s² |
Services
Owner support
- 1Output power: Net power rating as per ISO 7293, at specified RPM
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
