1/3
Push
Drive system
Collection/BioClip®
Cutting methods
48 cm
Cutting width
LC 519AP

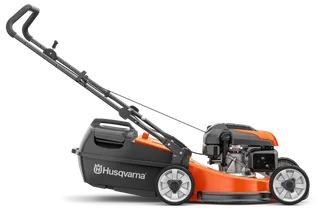

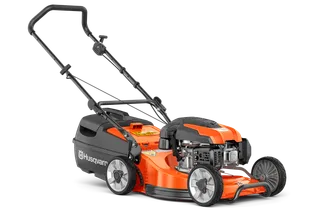

A commercial lawnmower with a large 48cm (19”) pressed steel cutting deck and large hard collector. Equipped with the fully commercial and high-specified four-stroke engine Husqvarna HS 166AP. Features include dual ball bearing wheels, comfort grip folding handle with quick action cam locks and eight cutting heights. Comes complete with mulch insert.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
CompareLC 519AP LAWN MOWER Art no: 970 60 92‑01 | |
|---|---|
| Engine | LC 519AP LAWN MOWER Art no: 970 60 92‑01 |
Net power at preset rpm Energy1 | 2,75 kW |
| Net power at preset rpm | 2 900 rpm |
| Engine brand | Husqvarna |
| Engine name | HS 166AP |
| Cylinder displacement | 166 cm³ |
| Engine lubrication type | Splash |
| Engine cooling | Air |
| Emission | |
Exhaust emissions (CO₂ EU V)2 | 922,38 g/kWh |
| Material | |
| Cutting deck material | Aluminium |
| Rims, material | Plastic |
| Cutting deck | |
| Cutting methods | Collection/BioClip® |
| Cutting width | 48 cm |
| BioClip® kit | Not available as accessory (NOT AVAILABLE) |
| BioClip® plug | Included |
| Cutting height steps | 10 |
| Cutting height adjustment | Central |
| Cutting height max | 80 mm |
| Cutting height min | 16 mm |
| Drive system | |
| Drive system | Push |
| Drive wheels | N/A |
| Speed forward max | 0 km/h |
| Speed forward min | 0 km/h |
| Equipment | |
| Collector type | Rigid box |
| Collector volume | 44 l |
| Handle type | Up-turned |
| Handle height adjustment | None |
| Wheel bearing, front/rear | Yes/Yes |
| Foldable handle | Yes |
| Soft grip | Yes |
| Side adjustable handle | No |
| Throttle control | Yes |
| Water hose connection | No |
| Blade brake clutch (BBC) | No |
| Dimensions | |
| Wheel size, Front | 210 mm |
| Wheel size, Rear | 210 mm |
| Weight (complete product w/o side packed articles) | 29,5 kg |
| Wheelbase | 55 cm |
| Sound and noise | |
| Sound pressure level at operators ear | 83 dB(A) |
| Sound power level, measured | 94 dB(A) |
| Sound power level, guaranteed (LWA) | 96 dB(A) |
| Vibration | |
| Vibrations handlebar | 9,9 m/s² |
Services
Services
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for LC 519AP can be found in the product support.
Product support for LC 519APDisclaimer:
- 1Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
