1/3
764 cm³
Cylinder displacement
17 kW
Net power at preset rpm Energy1
Petrol
Power/fuel type
High performance mowing with Clear Cut™ cutting deck

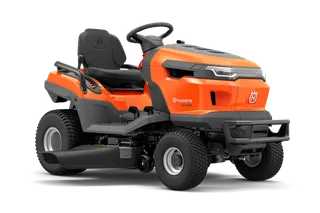

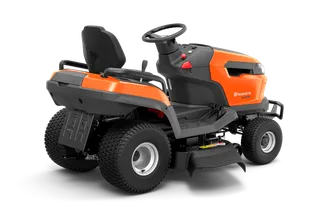

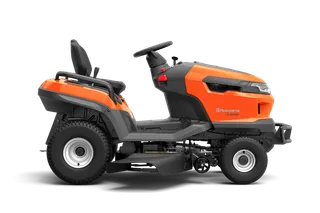

Husqvarna TS 220TDF garden tractor offers comfort-enhancing features and efficient cutting to make the maintenance of large lawns a pleasant experience. Easy-to-reach controls and levers, quickly adjusted seat, and handles contribute to high comfort and good ergonomics. So does the cruise control that lets you rest your foot when mowing large unobstructed areas. The 108 cm specially-designed Clear Cut™ cutting deck is built for superior performance and excellent cutting results, and with a wide range of cutting heights, adjustments can be made to suit different needs and grass conditions. The adjustment is spring assisted to reduce strain for operator. TS 220TDF also features anti-spin transmission, providing improved traction that facilitates driving in hilly terrain.
Engine features like auto choke, oil filter and twin cylinder, and robust design with cast iron front axles ensure reliable and durable performance. ROS (reverse operation system) is activated with the start key for quick access to reverse mowing, and to minimise the risk of the function being used unintentionally. There is also a brush guard to protect the front.
Engine features like auto choke, oil filter and twin cylinder, and robust design with cast iron front axles ensure reliable and durable performance. ROS (reverse operation system) is activated with the start key for quick access to reverse mowing, and to minimise the risk of the function being used unintentionally. There is also a brush guard to protect the front.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
CompareTS220TDF TRACTOR AU, NZ Art no: 970 74 06‑01 | |
|---|---|
| Cutting deck | TS220TDF TRACTOR AU, NZ Art no: 970 74 06‑01 |
Cutting width | 108 cm |
Cutting height max | 105 mm |
Cutting height min | 25 mm |
| Drive system | |
Drive method | Dual pedal-operation |
Speed forward max | 10 km/h |
Speed reverse max | 6 km/h |
| Engine | |
Cylinder displacement | 764 cm³ |
Motor/engine manufacturer | Husqvarna |
Engine name | HV 764AE |
Net power at preset rpm Energy1 | 17 kW |
Net power at preset rpm | 3 100 rpm |
Cylinders | 2 |
Power/fuel type | Petrol |
Oil filter | Yes |
| Equipment | |
Seat material | PU |
Front-End Protection | Brush Guard Style Bumper |
Hour meter type | Digital |
Seat back height | Medium |
Steering wheel type | Ergonomic - soft grip |
Collector | Available as accessory |
| Transmission | |
Transmission type | Hydrostatic |
Transmission manufacturer | Tuff Torq |
| Emission | |
Exhaust emissions (CO₂ EU V)2 | 806 g/kWh |
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for TS 220TDF can be found in the product support.
Product support for TS 220TDFDisclaimer:
- 1Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
