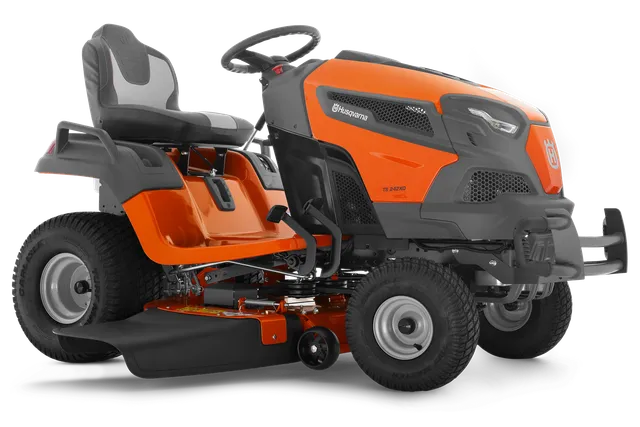

Parts, manuals and support for TS 242XD
All the support you need for TS 242XD. Manuals, spare parts, guides, how-to’s, and more.
Choose your SKU
For more product support please choose your SKU below.
Support content
Manuals & Documents(4)
Manuals & Documents
(4)
Showing the latest version of manual and documents for TS 242XD. For earlier versions, see link below to search all manuals & documents..
Accessories(27)
Accessories
(27)
All accessories for TS 242XD.
Troubleshooting & help(10)
Troubleshooting & help
(10)
Frequently read self-service articles about TS 242XD.
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
Standard Art no: 960 43 03‑07 | |
|---|---|
| Cutting deck | Standard Art no: 960 43 03‑07 |
| Cutting width | 42 in |
| Nose roller | Yes |
| Anti-scalp wheels | 2 |
| Engine | |
| Cylinder displacement | 44.3 cu.inch |
| Motor/engine manufacturer | Kawasaki |
| Engine name | FR Series |
| Cylinders | 2 |
| Generator | 15 A |
| Power/fuel type | Petrol |
| Oil filter | Yes |
| Drive system | |
| Drive method | Dual pedal-operation |
| Speed reverse max | 2.2 mph |
| Equipment | |
| Seat material | Vinyl |
| Front-End Protection | Brush Guard Style Bumper |
| Hour meter type | Digital with pre-programmed service intervals |
| Seat back height | High 15" |
| Steering wheel type | Deluxe Overmolded |
| Collector | Available as accessory |
| Emission | |
Exhaust emissions (CO₂ EU V) | 792 g/kWh |
| Transmission | |
| Transmission type | Hydrostatic with Automatic Differential Lock |
| Transmission manufacturer | Tuff Torq |
