Tillers

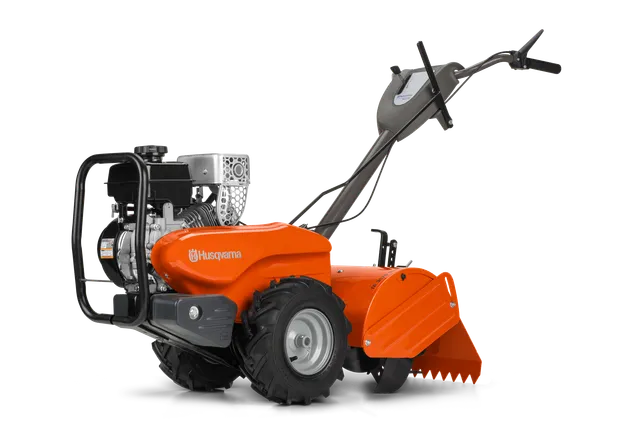

Parts, manuals and support for TR 317D

All the support you need for TR 317D. Manuals, spare parts, guides, how-to’s, and more.

Spare parts Specifications

Choose your SKU

For more product support please choose your SKU below.

SKU:

Spare parts

Choose the part you wish to repair

Combined viewImage viewList view

ENGINE

1 - CYLINDER HEAD ASSY.with gasket 420578532420578

-

2 - PUSH ROD SERVICE KIT 420579532420579

-

3 - VALVE COVER ASSEMBLY532420580

-

4 - DUMMY PART900000002

-

5 - PISTON ASSY 420582532420582

-

6 - DUMMY PART900000002

-

7 - CAMSHAFT 420584532420584

-

8 - FLYWHEEL593110401

-

9 - FLYWHEEL FAN 420586532420586

-

10 - CRANKSHAFT.KEYED.#14.LCT.208CC580352501

-

11 - AIR FILTER ASM. LCT.SK1362020.593109701

-

12 - FILTER.ASSEM.PANEL.LCT.208CC532432715

-

13 - KIT.49STATE.MUFFLER(SK208-2101532420590

-

14 - FUEL.TANK.2.7L.50STATE.LCT.208580352701

-

15 - FUEL.PETCOCK.1/4".LCT532429597

-

16 - CAP.FUEL.50STATE.W/CHAIN.LCT.580352801

-

17 - CARBURETOR.W/GASKETS.L33-2.EPA593109801

-

18 - IGNITION.COIL.LCT.593109901

-

19 - DUMMY PART900000002

-

20 - PLUG.SPARK.PLAT.SKSN2404.1532443898

-

21 - DUMMY PART900000002

-

22 - SHIELD593110501

-

23 - FUEL HOSE KIT532432144

-

24 - SPEED CONTROL.MANUAL.LCT.593110201

-

25 - GOVENOR.GEARS ASM(SK2082900)532429646

-

26 - GOVERNOR ARM SERVICE KIT 420601532420601

-

27 - GOVERNOR SHAFT ASSY 420602532420602

-

28 - RECOIL.STARTER.ROUND.BLACK532436673

-

29 - CUP593110301

-

30 - HOUSING BLOWER.BLK.ES LCT.593110601

-

31 - COVER.CRANKCASE.LCT.HIGH.OIL.F532443773

-

32 - SEAL KIT (2 PCS)532429599

-

34 - INSULATOR 429246532429246

-

35 - STARTER.ELECTRIC 120V593110701

-

36 - GASKET.KIT.208CC(SK2084300.1)532429601

-

37 - DUMMY PART900000002

-

38 - ROCKER ARM KIT532429691

-

39 - LEVER596570701

-

40 - NON REMOVABLE PLUG532429598

-

41 - FOAM.PRE.FILTER.LCT.208CC532443775

-

43 - TUBE.BREATHER.LCT.208580353401

-

44 - DUMMY PART900000002

-

45 - DUMMY PART900000002

-

46 - DUMMY PART900000002

-

47 - TUBE ASSY HIGH OIL-FILL581007201

-

49 - KIT.OIL.DRAIN.PLUG(SK2089911532435495

-

53 - DUMMY PART900000002

-

54 - DUMMY PART900000002

-

57 - DUMMY PART900000002

-

60 - DUMMY PART900000002

-

63 - DUMMY PART900000002

-

65 - TAPPET.KIT.LCT.208CC581372801

-

67 - DUMMY PART900000002

-

69 - DUMMY PART900000002

-

70 - CARB.REPAIR.KIT.LCT.SK9900.2580353601

-

71 - KNOB.SPEED.CONTROL.RED.LCT.580353501

-

72 - DUMMY PART900000002

-

76 - DUMMY PART900000002

-

77 - BOLT.KIT.RECOIL.LCT.ALL.ENGINE532432688

-

81 - KEYS.FLYWHEEL.208/414CC.5PACK585297201

-

82 - SPACER.CARBURETOR.208CC.LCT585020503

-

84 - DUMMY PART900000002

-

85 - STRAINER.FUEL.TANK.LCT.208CC586325601

-

86 - KIT.BOLT.CYLINDER.HEAD.(4PC)586327301

-

87 - KIT.BOLT.CRANKCASE.COVER.6PC586326901

-

88 - HIGH.ALTITUDE.JET.6000FT ANDUP586326001

-

88 - STUD.MUFFLER.KIT.LCT586326801

-

89 - DUMMY PART900000002

-

89 - SHIELD.MUFFLER.MANIFOLD.LCT.593110101

-

90 - BRACKET590898401

-

91 - COVER CRANKCASE GASKET587525701

-

Support content

Manuals & Documents

(1)

Showing the latest version of manual and documents for TR 317D. For earlier versions, see link below to search all manuals & documents..

Operator's Manual

Published: 12/18/2020

Warranty

All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.

Warranty policy
Warranty service

Check your warranty

Login or create an account on MyPages to check your warranty period.
MyPages

Is your product broken?

If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer

General questions

You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna

Specifications

TR317D PETROL TILLER SKU: 960 93 00‑30
Engine	TR317D PETROL TILLER SKU: 960 93 00‑30
Air filter type	Cartridge with pre filter
Power/fuel type	Petrol
Cylinder displacement	12.69 cu.inch
Capacity
Working width	17 in
Working depth	6.5 in
Rotational speed (min/max) max	299 rpm
Cultivator type	Rear-tine
Transmission
Transmission type	Chain/Gear
Transmission steps reverse	1
Transmission steps forward	1
Electric information
Engine name	Husqvarna Engine
