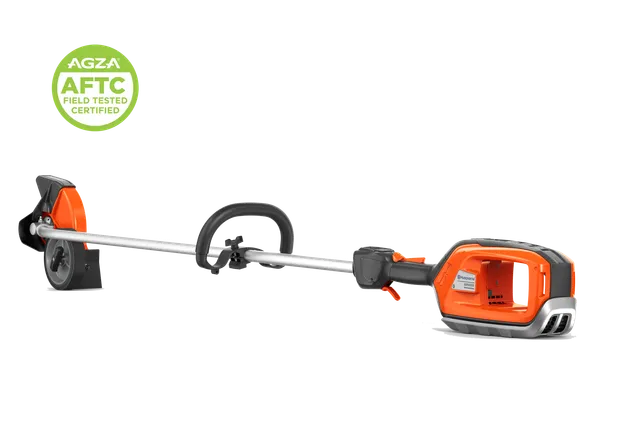

525iECS Edger, Battery, Curve shaft

Lawn Edgers

Parts, manuals and support for 525iECS (tool only)

All the support you need for 525iECS (tool only). Manuals, spare parts, guides, how-to’s, and more.

Spare parts Accessories Specifications

Choose your SKU

For more product support please choose your SKU below.

SKU:

Spare parts

Choose the part you wish to repair

Combined viewImage viewList view

DRIVE UNIT

1 - NUT NUT T300213260521804001

-

2 - TOOL HOLDER (B) Z612913250515537501

-

3 - EDGER BLADE503848202

503848202

-

4 - SCREW Internal Torx Socket Head Cap M 5 X 16 10.9 ZnFe Lock596876101

-

5 - PLATE 326ES T320724150505171901

-

6 - TOOL HOLDER (A) Z612913240515537401

-

7 - BOLT Internal Torx Socket Head Cap Flanged M 5 X 16 10.9 ZnFe Lock506745601

-

8 - PROTECTIVE PLATE 326ES505172002

-

9 - PROTECTION ASSY Edger, ECA850, ESA850596999901

-

10 - WASHER 326ES 0164220810505173001

-

11 - WHEEL 326ES 848A4766P0505172501

-

12 - SLEEVE 326ES T320725160505173301

-

13 - SPRING WASHER 0160220825505172901

-

14 - NUT527068601

-

15 - BOLT526059601

-

16 - BRACKET526059501

-

17 - RUBBER 326ES T320724330505173701

-

18 - SCREW Internal Torx Pan Head M 5 X 10 ZnFe578473501

-

19 - PLATE 326ES T320724320505173601

-

20 - NUT 326ES 0028010504505172301

-

21 - GEAR CASE ASSY588221401

-

22 - FITTING 326ES Z319913350505171501

-

23 - RING T330013330521821801

-

24 - BEARING 0600406201510569701

-

25 - BEARING Z612913120515537001

-

26 - BEARING 326ES 0600000609505169201

-

27 - BEARING 326ES 0600100609505169301

-

28 - RING T330013330521821801

-

29 - SNAP RING 0406502412505169401

-

30 - BOLT Internal Torx Socket Head Cap M 5 X 10.9 ZnFe529268101

-

31 - BOLT Internal Torx Socket Head Cap M 6 X 30 10.9 ZnFe576590701

-

32 - SNAP RING 0406503212504121001

-

Support content

Manuals & Documents

(2)

Showing the latest version of manual and documents for 525iECS (tool only). For earlier versions, see link below to search all manuals & documents..

Operator's Manual

Published: 6/26/2024

Accessories

(6)

All accessories for 525iECS (tool only).

Warranty

All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.

Warranty policy
Warranty service

Check your warranty

Login or create an account on MyPages to check your warranty period.
MyPages

Is your product broken?

If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer

General questions

You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna

Specifications

BATTERY EDGER 525iECS SKU: 970 55 21‑01
Capacity	BATTERY EDGER 525iECS SKU: 970 55 21‑01
Cutting width	7.9 in
Engine
Maximum power speed	10,500 rpm
Maximum rpm output shaft	8,400 rpm
Dimensions
Tube diameter	0.945 in
Transmission
Gear ratio	1
Drive gear angle	30 °
Equipment
Grass blade	Edger blade 195-2
Harness	Single harness
Sound and noise
Sound pressure level at operators ear	80 dB(A)
