1/4
88 cm³
Cylinder displacement
6.5 hp
Output shaft power1
70.2 fts
Chain speed at max power
Product Options
Bar length
Bar length (inch)
Buying options
What's Included
What's Included
HUSQVARNA 390 XP® - 965 06 07‑14
Included
- Nose typeReplaceable sprocket nose
- SpikesMounted
- Chain typeH83
- Bar length (inch)32 in
Shipping & Returns
Shipping & Returns
Husqvarna aims to deliver orders promptly, so changes or cancellations are not accepted once an order is placed.
Husqvarna offers a refund for online purchases if you are not satisfied, minus any shipping or restocking fees.
Warranty
Warranty
At Husqvarna, we're committed to ensuring your satisfaction. Our warranty covers any defects in material or workmanship under normal use during the warranty period.

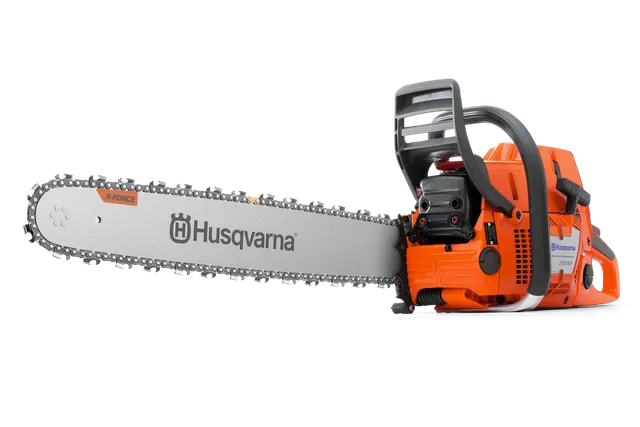

Professional 88cc chainsaw designed for sawing with longer bars
Discover the high end of logging and forestry chainsaws. The Husqvarna 390 XP® features professional performance and excellent vibration dampening, making work easier and more efficient than ever before. The LowVib® system and smart ergonomics make this large, powerful saw easy to handle – even with longer guide bars. Additionally, Smart Start® technology guarantees faster start-ups, while the rubber-mounted carburetor boosts durability. Prepare to get the job done like never before.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
Compare32" RSN 3/8" 1,6 mm H83 SKU: 965 06 07‑14 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Engine | 32" RSN 3/8" 1,6 mm H83 SKU: 965 06 07‑14 | 20" Bar, 3/8" Pitch, .050" Gauge, Assembly Required SKU: 965 06 07‑20 | 24" Bar, 3/8" Pitch, .050" Gauge, Assembly Required SKU: 965 06 07‑24 | 28" Bar, 3/8" Pitch, .050" Gauge, Assembly Required SKU: 965 06 07‑28 | 20" Bar, 3/8" Pitch, .058" Gauge, Assembly Required SKU: 965 06 07‑30 | 32" Bar, 3/8" Pitch, .050" Gauge, Assembly Required SKU: 965 06 07‑32 | 24" Bar, 3/8" Pitch, .058" Gauge, Assembly Required SKU: 965 06 07‑34 | 28" Bar, 3/8" Pitch, .058" Gauge, Assembly Required SKU: 965 06 07‑38 | 28" RSN 3/8" 1,6 mm H83 SKU: 965 06 07‑50 | 28" US Lightweight RSN 3/8" 1,3 mm C83 SKU: 965 06 07‑58 | 32" US Lightweight RSN 3/8" 1,6 mm H83 SKU: 965 06 07‑62 | 36" US Lightweight RSN 3/8" 1,6 mm H83 SKU: 965 06 07‑66 |
| Chain speed at max power | 70.2 fts | 70.2 fts | 70.2 fts | 70.21 fts | 70.21 fts | 70.2 fts | 70.2 fts | 70.2 fts | 70.2 fts | 70.2 fts | 70.2 fts | 70.2 fts |
| Cylinder displacement | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ | 88 cm³ |
Output shaft power1 | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp | 6.5 hp |
| Torque, max. | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm | 4.7 Nm |
| Torque, max. at rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm | 6,600 rpm |
| Clutch engagement speed (±120) | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm | 3,600 rpm |
| Electrode gap | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in |
| Idling speed | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm | 2,700 rpm |
| Ignition module air gap | 0 in | 0 in | 0 in | 0.01 in | 0.01 in | 0 in | 0 in | 0 in | 0 in | 0 in | 0 in | 0 in |
| Maximum power speed | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm | 9,600 rpm |
| Oil pump capacity, max | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min | 24 ml/min |
| Oil pump capacity, min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min | 6 ml/min |
| Oil pump type | Automatic | Adjustable flow | Adjustable flow | Adjustable flow | Adjustable flow | Adjustable flow | Adjustable flow | Adjustable flow | Automatic | Automatic | Automatic | Automatic |
| Spark Plug | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A | Champion RCJ7Y, NGK BPMR7A |
| Equipment | ||||||||||||
| Recommended bar length, min | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in | 18 in |
| Pitch | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" |
| Recommended bar length, max | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in |
| Chain type | H83 | C83 | C83 | C83 | C85 | C83 | C85 | C85 | H83 | C83 | H83 | H83 |
| Bar length | 81 cm | 50 cm | 60 cm | 70 cm | 50 cm | 81 cm | 60 cm | 45 cm | 70 cm | 70 cm | 81 cm | 90 cm |
| Bar length (inch) | 32 in | 20 in | 24 in | 28 in | 20 in | 32 in | 24 in | 18 in | 28 in | 28 in | 32 in | 36 in |
| Sprocket type | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 |
| Gauge | .063" | .058" | .058" | .058" | .058" | .058" | .058" | .058" | .063" | .058" | .058" | .058" |
| Dimensions | ||||||||||||
| Weight (excl. cutting equipment) | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs | 16.1 lbs |
| Sound and noise | ||||||||||||
| Sound pressure level at operators ear | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) | 107 dB(A) |
| Sound power level, guaranteed (LWA) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) |
| Sound power level, measured | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) |
| Vibration | ||||||||||||
| Equivalent vibration level (ahv, eq) rear handle | 7.5 m/s² | 6.2 m/s² | 6.2 m/s² | 6.2 m/s² | 6.2 m/s² | 6.2 m/s² | 6.2 m/s² | 6.2 m/s² | 7.5 m/s² | 7.5 m/s² | 7.5 m/s² | 7.5 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 6.5 m/s² | 3.5 m/s² | 3.5 m/s² | 3.5 m/s² | 3.5 m/s² | 3.5 m/s² | 3.5 m/s² | 3.5 m/s² | 6.5 m/s² | 6.5 m/s² | 6.5 m/s² | 6.5 m/s² |
| Lubricant | ||||||||||||
| Oil tank volume | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint | 1.06 US pint |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 |
Services
Services
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for 390 XP® can be found in the product support.
Product support for 390 XP®Disclaimer:
- 1Output shaft power: Net power rating as per ISO 7293, at specified RPM
