Working area capacity (±20)
Boundary type
App controlled
Included
- Charging stationYes
- Power supply unitYes
- Low voltage cable10 m
Not included
- Extra blades
- Loop wire
- Stakes

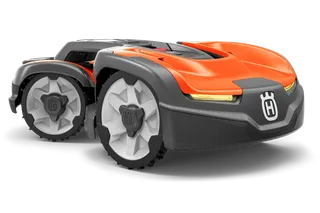

Automower® 535 AWD
Features

All-Wheel Drive
Automower® AWD models optimizes the control of each individual wheel in order to enable superior operation in the most demanding terrain.

Pivoting rear body design
The articulated rear body enables excellent maneuverability on complex lawns and traction in rough terrain.

Manages slopes up to 70%
Large coarse-tread wheels provide excellent traction on slopes up to 70%.

Warning lights
Warning lights with pulsating or solid light to create awareness during operation at night.

Husqvarna Fleet Services™
Husqvarna Fleet Services™ gives you full control of the mower with the possibility to monitor, control and analyze your entire fleet of products from your smartphone, tablet or laptop.

Pro user interface
Interface adapted for professional remotely handling through Husqvarna Fleet Services. Controls on product; status LED indication and START / STOP functionality.

AIM Technology
Uses onboard GPS and sensors to create a virtual map of the installed area. Create work areas with unique cutting heights and schedules, or temporary stay-out zones when needed via the Automower® Connect app.

Weather timer
Adjusts the working time to the lawn’s growth rate, which decreases wear on lawn and mower.

Remote object detection
Built-in sensors helps the mower to avoid hard collisions by detection of objects.

Automatic passage handling - PATENTED
Automatically senses narrow passages and finds its way even through the smallest passages.

Electric height adjustment - PATENTED
Electric cutting height adjustment makes it convenient to set the desired height via the Husqvarna Automower® Connect app.

5 blade cutting disc
The cutting discs on the commercial models, Automower 500-series and CEORA, are equipped with 5 Enhance HSS blades, which gives a higher cutting performance.

Unique cutting system
Equipped with sharp razor-like blades mounted on a robust cutting disc system for best cutting performance and low energy consumption.

Triple guide wires - PATENTED
Triple guidewires reduces searching time in all challenging gardens.

Balance control
Automatically detects and notifies if imbalance in the cutting system occur to ensure trouble-free operation.

FOTA – Firmware Over-The-Air
FOTA – a technology that enables the operators to perform upgrades of the firmware, via the Fleet Services app.

Scheduling
Easily programmable weekly timer function.

Theft protection by GPS
Equipped with GPS based geofence including flash notifications to your devices.

Safety sensors
Equipped with several safety sensors, including an automatic and immediate shutdown of the cutting function if the unit tips over or is lifted from the ground. If Automower® encounters any obstacles, it stops or changes direction, further ensuring its mowing mission.

Weatherproof design
Designed to operate 24/7 throughout the grass growing season, with normal maintenance and cleaning. The unique cutting system, with free-hanging razor blades on a cutting disc, ensures the cutting result even in rainy conditions.
Specifications
Automower® 535 AWD Art no: 970 65 17‑03 | |
---|---|
Capacity | Automower® 535 AWD Art no: 970 65 17‑03 |
Working area capacity (±20) | 3,500 m² |
Boundary type | Physical wire |
Maximum slope performance at boundary | 50 % |
Maximum slope performance inside installation | 70 % |
Max active time | 24 h |
Follow guide | 3 |
Charging system | Automatic |
Overall dimensions | |
Weight (complete product w/o side packed articles) | 17.6 kg |
Product size length | 93 cm |
Product size width | 55 cm |
Product size height | 29 cm |
Product data | |
Colour | Orange |
Sound level perceived | 60 dB(A) |
Protection Index (IP Code) | IPX4 |
Battery type | Lithium Ion |
Battery capacity | 8 Ah |
Charging current | 7 A |
Typical mow time on one charge | 145 min |
Typical charging time | 45 min |
Mean energy consumption per month at maximum use | 24 kWh |
Area capacity - Standard 48 | 3,500 m² |
Area capacity - Sports 24 | 2,500 m² |
Area capacity - Max 72 | 4,000 m² |
Cutting System | |
Cutting system | 5 pivoting razor blades |
Cutting height max | 70 mm |
Cutting height min | 30 mm |
Cutting width | 22 cm |
Cutting height adjustment | Electric |
Skid plate | Yes |
Dual cutting direction | Yes |
Control | |
User Interface | Professional User Interface/App |
Display | None |
Connectivity | Bluetooth®, Cellular |
App controlled | Husqvarna Fleet Services |
Smart Home integration | Yes |
Firmware Update | FOTA |
Safety | |
GPS Theft tracking | Yes |
GeoFence | Yes |
PIN code | Yes |
Alarm | Yes |
Lift sensor | Yes |
Tilt sensor | Yes |
Object detection | Ultrasonic sensor |
