Husqvarna Charging Cabinet M, 400V
Husqvarna Charging Cabinet M, 400V - 970 79 04‑02
Included
- Potential-free alarm interfaceYes
- Smoke detectorYes
- Remote signal moduleYes
- 400V cableYes
Not included
- Temperature sensor
- Fire suppression unit
- Active ventilation
- Relay module
- Timer
Product Description

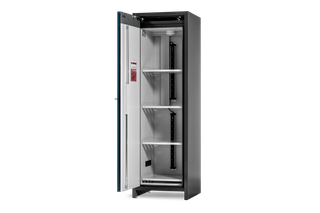

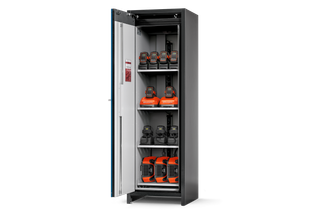

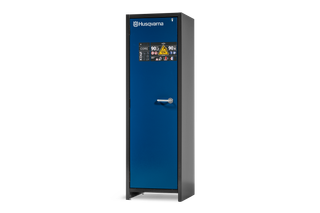

Husqvarna Battery Charging Cabinet M is engineered for safe and approved storage and charging of lithium-ion batteries. This one-door 400V cabinet offers 90 minutes of fire resistance from the outside in and from the inside out*. Equipped with a smoke detector, providing early detection of incipient fires, and a potential-free alarm system that ensures that on-site alarms are promptly forwarded. Ready-to-use outlet strips and shelves are included.*According to EN-14470-1 and EN-13631
Product Information
Compare specifications and features with similar Husqvarna products.
CompareBattery charging cabinet M 400V Art no: 970 79 04‑02 | |
|---|---|
| Product data | Battery charging cabinet M 400V Art no: 970 79 04‑02 |
Weight (complete product w/o side packed articles) | 300 kg |
Number of storage levels | 4 |
Number of protective sockets | 16 |
Potential-free alarm interface | Yes |
Smoke detector | Yes |
Temperature sensor | No |
Fire suppression unit | No |
Active ventilation | No |
Remote signal module | Yes |
Relay module | No |
Timer | No |
400V cable | Yes |
GTIN-13/EAN | 7333377645561 |
| Electric information | |
Fuse protection (3- phase) | 13 A |
Power max. (3-phase) | 8.97 kW |
| Dimensions | |
External dimensions W x D x H [mm] | 599x615x1953 |
Internal dimensions W x D x H [mm] | 450x522x1647 |
