Husqvarna Charging Cabinet L, 230V
What's included
What's included
Husqvarna Charging Cabinet L, 230V - 970 79 01‑02
Included
- Potential-free alarm interfaceYes
- Smoke detectorYes
- Temperature sensorYes
- Fire suppression unitYes
- Active ventilationYes
- Remote signal moduleYes
- Relay moduleYes
Not included
- Timer
- 400V cable

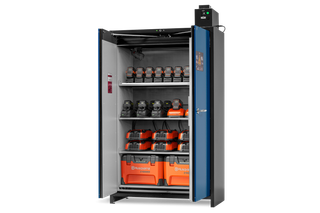

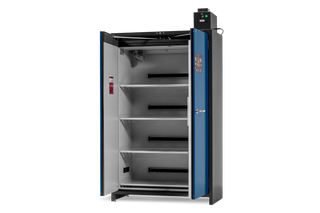

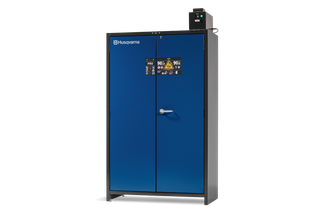

Large 230V battery cabinet with extensive fire protection and monitoring
Husqvarna Battery Charging Cabinet L is engineered for safe and approved storage and charging of lithium-ion batteries. This spacious 230V cabinet offers 90 minutes of fire resistance from the outside in and from the inside out*. Equipped with a smoke detector and a temperature sensor, providing early detection of incipient fires and ventilation failures. The fire suppression system is automatically triggered in the event of a fire, while the potential-free alarm system ensures that on-site alarms are promptly forwarded. Additionally, the active ventilation system maintains optimal conditions for batteries and chargers, avoiding heat build-up during the charging process. Ready-to-use outlet strips and height-adjustable shelves for customized storage solutions are included.
*According to EN-14470-1 and EN-13631
*According to EN-14470-1 and EN-13631
Product Information
Compare specifications and features with similar Husqvarna products.
CompareBattery charging cabinet L 230V Art no: 970 79 01‑02 | |
---|---|
Product data | Battery charging cabinet L 230V Art no: 970 79 01‑02 |
Weight (complete product w/o side packed articles) | 505 kg |
Number of storage levels | 4 |
Number of protective sockets | 32 |
Potential-free alarm interface | Yes |
Smoke detector | Yes |
Temperature sensor | Yes |
Fire suppression unit | Yes |
Active ventilation | Yes |
Remote signal module | Yes |
Relay module | Yes |
Timer | No |
400V cable | No |
GTIN-13/EAN | 7333377645479 |
Electric information | |
Fuse protection (1-phase) | 13 A |
Power max. (1-phase) | 2.99 kW |
Dimensions | |
External dimensions W x D x H [mm] | 1193x615x2224 |
Internal dimensions W x D x H [mm] | 1050x522x1647 |
