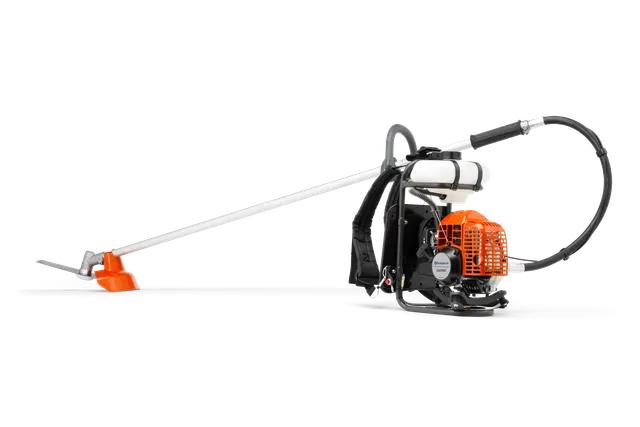

Parts, manuals and support for 532RBS
All the support you need for 532RBS. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.
Support content
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
Multi 330-2, Asia only Art no: 966 71 30‑01 | |
|---|---|
| Capacity | Multi 330-2, Asia only Art no: 966 71 30‑01 |
| Cutting width | 33 cm |
| Engine | |
| Cylinder displacement | 33.6 cm³ |
| Output shaft power | 1.1 kW |
| Fuel tank volume | 1.3 l |
| Fuel consumption | 612 g/kWh |
| Maximum power speed | 7,500 rpm |
| Idling speed | 2,500 rpm |
| Electrode gap | 0.7 mm |
| Clutch engagement speed (±120) | 3,300 rpm |
| Torque, max. | 1.7 Nm |
| Torque, max. at rpm | 5,500 rpm |
| Spark Plug | Champion RCJ6Y |
| Equipment | |
| Grass blade | Multi 330-2 |
| Harness | Integrated |
| Saw blade | Not included |
| Trimmer head | Not included |
| Dimensions | |
| Weight (excl. cutting equipment) | 8.9 kg |
| Lubricant | |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
| Sound and noise | |
| Sound pressure level at operators ear | 87 dB(A) |
