Lawn Mowers
HUSQVARNA KLIPPO LB 553S e
Self-propelled, single speed
Drive system
BioClip®
Cutting methods
53 cm
Cutting width
What's included
What's included
HUSQVARNA KLIPPO LB 553S e - 970 48 22‑02
Not included
- BioClip® kit
- BioClip® plug

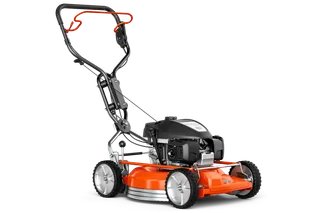

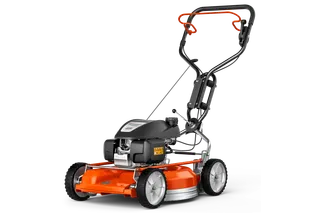

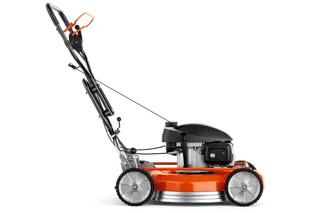

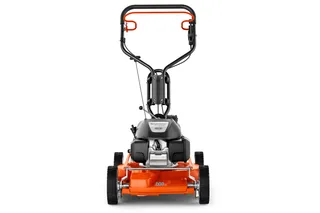

KLIPPO LB 553S e
KLIPPO LB 553S e, a reliable and dedicated BioClip® mower with front-wheel drive for commercial use. The fullsized 53 cm cutting deck makes it to a perfect solution for mid-sized to larger areas or as a complementary trimming tool for rode-on or robotic mowers. The design has focussed on achieving the best possible ergonomic conditions for the operator and an extra-ordinary cutting results, even in wet weather. Equipped with strong and easy-start Honda GCV-engine, cast aluminium deck, light-weight aluminium wheels and an ergonomic side-adjustable and effective anti-vibrated handle system, which help the model fulfil A(8) EN836. KLIPPO LB 500 Series, commercial models with outstanding performance and durability for a long-term relation.
Features
Features
Honda GCVx engine
Reliable, powerful and easy starting. EU stage V certified for more stringent regulations.
BioClip®
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
CompareKLIPPO LB 553S e LAWN MOWER Art no: 970 48 22‑02 | |
|---|---|
| Engine | KLIPPO LB 553S e LAWN MOWER Art no: 970 48 22‑02 |
Net power at preset rpm Energy1 | 3.3 kW |
Net power at preset rpm | 2,900 rpm |
Engine brand | Honda |
Engine name | GCVX-170 |
Cylinder displacement | 166 cm³ |
Engine lubrication type | Splash |
Engine cooling | Air |
| Emission | |
Exhaust emissions (CO₂ EU V)2 | 862 g/kWh |
| Material | |
Cutting deck material | Aluminium |
Rims, material | Aluminium |
| Cutting deck | |
Cutting methods | BioClip® |
Cutting width | 53 cm |
BioClip® kit | Not available as accessory (NOT AVAILABLE) |
BioClip® plug | N/A |
Cutting height steps | 5 |
Cutting height adjustment | Central, spring-assisted |
Cutting height max | 65 mm |
Cutting height min | 28 mm |
| Drive system | |
Drive system | Self-propelled, single speed |
Drive wheels | Front |
Speed forward max | 4.8 km/h |
Speed forward min | 4.8 km/h |
| Equipment | |
Handle type | Anti-vibrated |
Handle height adjustment | 2 Step |
Wheel bearing, front/rear | Yes/Yes |
Foldable handle | No |
Soft grip | Yes |
Side adjustable handle | Yes |
Throttle control | No |
Water hose connection | No |
Blade brake clutch (BBC) | No |
| Dimensions | |
Wheel size, Front | 203 mm |
Wheel size, Rear | 203 mm |
Weight (complete product w/o side packed articles) | 37.5 kg |
Wheelbase | 59.5 cm |
| Sound and noise | |
Sound pressure level at operators ear | 83 dB(A) |
Sound power level, measured | 94 dB(A) |
Sound power level, guaranteed (LWA) | 95 dB(A) |
| Vibration | |
Vibrations handlebar | 4.1 m/s² |
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for KLIPPO LB 553S e can be found in the product support.
Product support for KLIPPO LB 553S eDisclaimer:
- 1Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
