Power Cutters
Parts, manuals and support for K 770 Rescue
All the support you need for K 770 Rescue. Manuals, spare parts, guides, how-to’s, and more.
Choose article number
To show you the right support, choose an article number from this list.

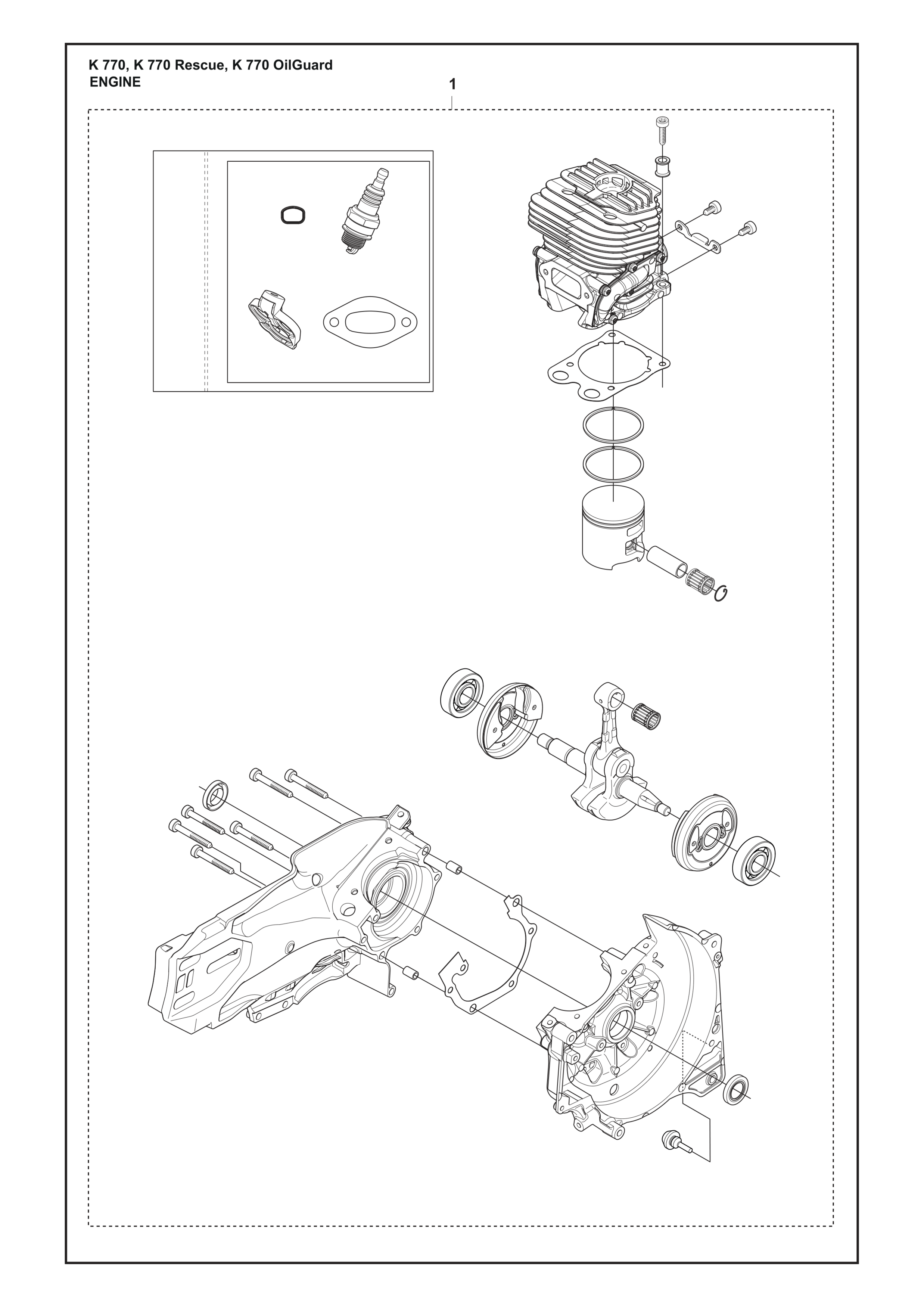

Spare parts
Choose the part you wish to repair
Article
Art. number
Support content
Accessories
(1)
Accessories
(1)
All accessories for K 770 Rescue.
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
POWER CUTTER K 770 Rescue Rescue | 12" | 0,8" Art no: 967 80 91‑01 | |
|---|---|
| Engine | POWER CUTTER K 770 Rescue Rescue | 12" | 0,8" Art no: 967 80 91‑01 |
Output power | 3.7 kW |
Cylinder displacement | 73.5 cm³ |
Electrode gap | 0.5 mm |
Cylinders | 1 |
Number of strokes | 2-stroke engine |
| Cutting System | |
Blade diameter, max | 300 mm |
Arbor diameter | 20 mm |
Blade thickness, max | 5 mm |
Peripheral speed, max | 80 m/s |
| Dimensions | |
Product size length | 618 mm |
Product size width | 221 mm |
Product size height | 391 mm |
Weight (complete product w/o side packed articles) | 10 kg |
| Cutting deck | |
Cutting depth, max | 100 mm |
| Sound and noise | |
Sound power level, guaranteed (LWA) | 115 dB(A) |
Sound pressure level at operators ear | 101 dB(A) |
| Emission | |
Exhaust emissions (CO₂ EU V) | 711 g/kWh |
| Vibration | |
Vibrations left/front handle | 2.1 m/s² |
Vibrations right/rear handle | 2.3 m/s² |
