Specifications

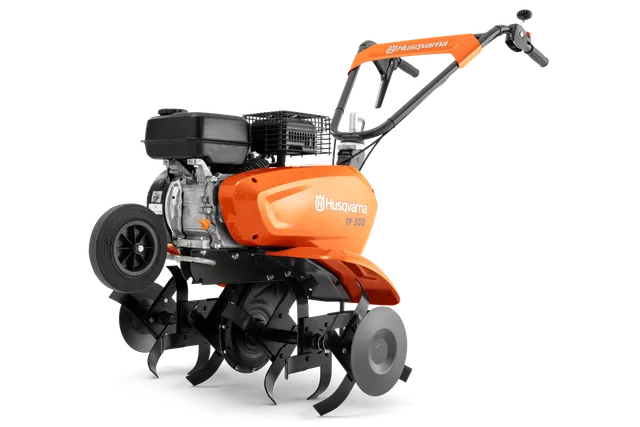

TF 335 PETROL TILLER Art no: 970 65 27‑01
Engine	TF 335 PETROL TILLER Art no: 970 65 27‑01
Net power at preset rpm Energy	4 kW
Air filter type	Oil bath
Fuel tank volume	3.6 l
Power/fuel type	Petrol
Cylinder displacement	212 cm³
Capacity
Working width	80 cm
Working depth	30 cm
Tine diameter	320 mm
Number of tines	6
Rotational speed (min/max) min	63 rpm
Rotational speed (min/max) max	155 rpm
Cultivator type	Front-tine
Equipment
Rubber wheels	Not available
Transport wheel/s	1
Foldable handlebar	Yes
Horizontally adjustable handlebar	Yes
Vertically adjustable handlebar	Yes
Emission
Exhaust emissions (CO₂ EU V)	932.85 g/kWh
Transmission
Transmission type	Chain/Manual
Transmission steps reverse	1
Transmission steps forward	2
Dimensions
Weight (complete product w/o side packed articles)	58 kg
Electric information
Engine name	R210
