Cylinder displacement
Output shaft power1
Chain speed at max power
Included
- Nose typeSprocket nose
- SpikesMounted
- Chain typeSP33G
- Bar length (inch)18 in

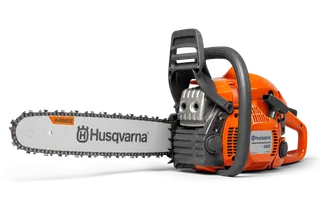

Light and high-performing 45cc chainsaw
Features
Air Injection
Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life
Flip-Up Fuel Cap
The flip-up fuel cap is easy to open and close when refueling, even if you are wearing thick gloves.
Quick-release air filter
Easily remove and replace the filter after cleaning
Felling Marks
Dedicated marks for increased felling precision
Powerful and Efficient X-TORQ® Engine
Great power and efficiency
Combined choke/stop control
Provides easier starting and reduces the risk of engine flooding
Side-mounted chain tensioner
Easier access to chain tensioning device
Snap-lock cylinder cover
Saves time when changing spark plugs and cleaning
Three-piece crankshaft
Forged three-piece crankshaft delivers maximum durability for even the toughest of jobs
LowVib®
Effective LowVib® dampeners absorb vibration, sparing the user’s arms and hands.
Fuel pump
Air purge removes air from carburetor and fuel system for easy starting
Inertia chain brake
Effective inertia-activated chain brake reduces the likelihood of injury due to kickback.
Fuel Indicator
Transparent fuel indicator makes it easy to check fuel level
Easy to start
Combined start/stop switch and fuel pump make the saw very easy to start.
Specifications
18" .325", SP33G, SN, 44µ, all markets Art no: 970 55 87‑38 | |
|---|---|
| Engine | 18" .325", SP33G, SN, 44µ, all markets Art no: 970 55 87‑38 |
| Chain speed at max power | 17.3 m/s |
| Cylinder displacement | 45.7 cm³ |
Output shaft power1 | 2.1 kW |
| Equipment | |
| Recommended bar length, min | 33 cm |
| Pitch | .325" |
| Recommended bar length, max | 50 cm |
| Chain type | SP33G |
| Guide Bar | 45 cm |
| Bar length (inch) | 18 in |
| Dimensions | |
| Weight (excl. cutting equipment) | 4.9 kg |
| Sound and noise | |
| Sound pressure level at operators ear | 103 dB(A) |
| Sound power level, guaranteed (LWA) | 114 dB(A) |
| Vibration | |
| Equivalent vibration level (ahv, eq) rear handle | 4.9 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 3.1 m/s² |
| Emission | |
Exhaust emissions (CO₂ EU V)2 | 920 g/kWh |
Owner support
- 1Output shaft power: Net power rating as per ISO 7293, at specified RPM
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
