1/1
45 cm
Cutting width
1 kW
Output shaft power1
4.3 kg
Weight (excl. cutting equipment)
HUSQVARNA 525RJX - 966 77 71‑01
Included
- Grass bladeGrass 255-4
- HarnessSingle harness
- Trimmer headT35 M10
Not included
- Saw blade

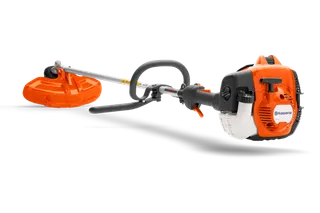

525RJX
Efficient and easy to use brushcutter with J handle that allows you to use both trimmer line and grass blade. Has the lowest vibration rates in its class.
Features
Features
Auto return stop switch
When the stop switch has been used, it is automatically reset to ON to facilitate the next start.
Easily adjustable single harness
Single harness that is easy to fit and adjust. Provides basic support and a more comfortable working position
High Line Capacity
With Tap'n Go, line feeding is done effortlessly by simply pushing the trimmer head into the ground.
Smart Start®
Specially-designed engine and starter for easy and fast starting with minimum effort
Combi-guard
The cutting attachment combi-guard offers versatile use with either a grass blade or a trimmer head.
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
CompareAll except US50, T35 + Grass 255-4 Art no: 966 77 71‑01 | |
|---|---|
| Engine | All except US50, T35 + Grass 255-4 Art no: 966 77 71‑01 |
Cylinder displacement | 25.4 cm³ |
Output shaft power1 | 1 kW |
Fuel tank volume | 0.51 l |
Fuel consumption | 600 g/kWh |
Maximum power speed | 8,500 rpm |
Idling speed | 3,000 rpm |
Maximum rpm output shaft | 6,500 rpm |
Electrode gap | 0.65 mm |
Clutch engagement speed (±120) | 4,000 rpm |
Torque, max. | 1.2 Nm |
Torque, max. at rpm | 6,000 rpm |
Spark Plug | NGK BPMR8Y |
| Equipment | |
Grass blade | Grass 255-4 |
Harness | Single harness |
Saw blade | Not included |
Trimmer head | T35 M10 |
Handle type | J handle |
| Control | |
Connectivity | Not applicable |
| Capacity | |
Cutting width | 45 cm |
| Transmission | |
Gear ratio | 19 |
Drive gear angle | 30 ° |
| Dimensions | |
Tube diameter | 24 mm |
Weight (excl. cutting equipment) | 4.3 kg |
Tube length | 1,483 mm |
| Lubricant | |
Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
Lubricant type (bevel gear) | Mineral grease |
| Sound and noise | |
Sound pressure level at operators ear | 94 dB(A) |
Sound power level, guaranteed (LWA) | 106 dB(A) |
| Emission | |
Exhaust emissions (CO average) EU | 87.57 g/kWh |
Exhaust emissions (CO average) EPA | 206.73 g/kWh |
Exhaust emissions (NOx average) EU | 0.56 g/kWh |
Exhaust emissions (CO₂ EU V)2 | 1,141 g/kWh |
Services
Services
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for 525RJX can be found in the product support.
Product support for 525RJXDisclaimer:
- 1Output shaft power: Net power rating as per ISO 8893, at specified RPM
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
