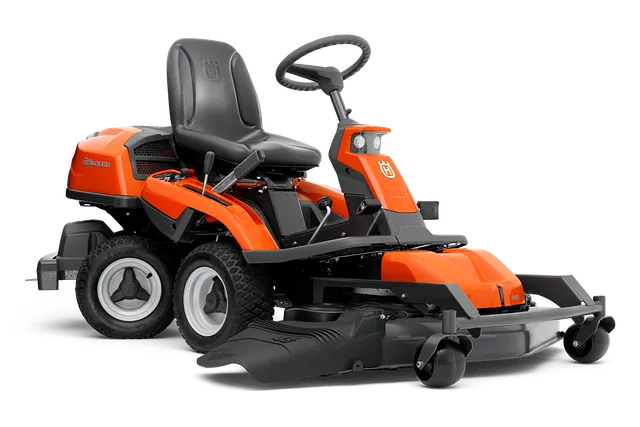

Parts, manuals and support for R 322T AWD
All the support you need for R 322T AWD. Manuals, spare parts, guides, how-to’s, and more.
Choose your SKU
For more product support please choose your SKU below.
Support content
Accessories(3)
Accessories
(3)
All accessories for R 322T AWD.
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Specifications
Specifications
With Side Discharge Deck Art no: 967 03 21‑01 | |
|---|---|
| Cutting deck | With Side Discharge Deck Art no: 967 03 21‑01 |
| Uncut circle | 66 cm |
| Cutting width, min | 103 cm |
| Cutting width, max | 122 cm |
| Cutting height min | 38.1 mm |
| Cutting height max | 101.6 mm |
| Blade engagement | Automatic |
| Engine | |
| Power/fuel type | Petrol |
| Net power at preset rpm Energy | 12.6 kW |
| Motor/engine manufacturer | Briggs & Stratton |
| Engine name | Endurance Series V-Twin |
| Cylinder displacement | 656 cm³ |
| Cylinders | 2 |
| Engine cooling | Air |
| Oil filter | Yes |
| Dimensions | |
| Tyre dimensions, front | 170/60-8 |
| Tyre dimensions, rear | 170/60-8 |
| Wheelbase | 88.7 cm |
| Base machine, length | 202 cm |
| Base machine, width | 89 cm |
| Base machine, height | 115 cm |
Gross weight towed | 125 kg |
| Vibration | |
| Vibration level steering wheel | 2.5 m/s² |
| Vibration level seat | 0.7 m/s² |
| Drive system | |
| PTO (Power Take Off) | Belt Drive |
| Transmission type | Hydrostatic |
| Transmission manufacturer, rear | Tuff Torq |
| Drive method | Dual pedal-operation |
| Speed forward max | 9 km/h |
| Speed reverse max | 5.6 mph |
| Speed reverse max | 9 km/h |
| Transmission manufacturer, front | Tuff Torq |
| Transmission model, front | KTM10L |
| Transmission model, rear | K574 |
| Battery | |
| Battery capacity | 24 Ah |
| Battery type | Lead-Acid |
| Battery pack weight | 7.2 kg |
| Battery manufacturer | Global |
| Equipment | |
| Seat suspension | Yes |
| Hour meter type | Digital with pre-programmed service intervals |
| Seat material | Vinyl |
| Seat back height | High |
| Foldable seat | Yes |
| Steering wheel type | Comfort |
| Parking brake, type | Disc |
