Grass Trimmers

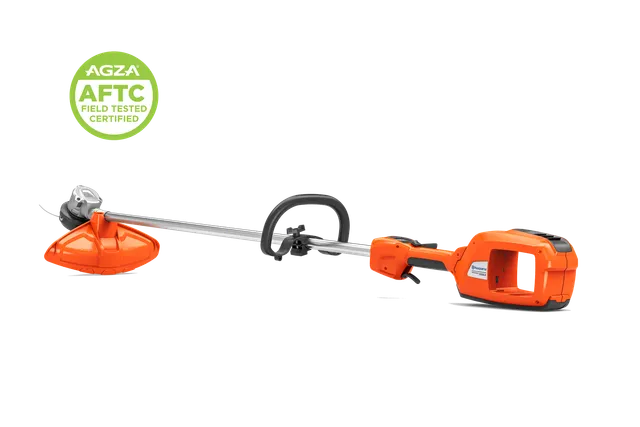

Parts, manuals and support for 520iLX
All the support you need for 520iLX. Manuals, spare parts, guides, how-to’s, and more.
Choose your SKU
For more product support please choose your SKU below.
Spare parts
Choose the part you wish to repair
Name
SKU
Support content
Manuals & Documents
(2)
Manuals & Documents
(2)
Showing the latest version of manual and documents for 520iLX. For earlier versions, see link below to search all manuals & documents..
Accessories
(5)
Accessories
(5)
All accessories for 520iLX.
Warranty
Warranty
All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.
Warranty policy
Warranty service
Check your warranty
Login or create an account on MyPages to check your warranty period.
MyPages
Is your product broken?
If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer
General questions
You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna
Services & apps
(1)
Services & apps
(1)
Specifications
Specifications
US - no battery, no charger SKU: 967 91 61‑12 | |
|---|---|
| Capacity | US - no battery, no charger SKU: 967 91 61‑12 |
Cutting width | 40 cm |
| Engine | |
Maximum rpm output shaft | 5,500 rpm |
Motor type | BLDC (brushless) |
| Dimensions | |
Weight (excl. battery and cutting equipment) | 3 kg |
Weight (excl. battery) | 3 kg |
Tube diameter | 24 mm |
Product size length | 176 cm |
| Equipment | |
Gear ratio | 1 |
Drive gear angle | 35 ° |
Harness | Not included |
Saw blade | Not included |
Trimmer head | T25B |
Grass blade | Not included |
Battery | Not included |
Battery charger | Not included |
Number of batteries included | 0 |
| Battery | |
Battery voltage | 36 V |
Battery type | Li-Ion |
| Vibration | |
Equivalent vibration level (ahv, eq) front handle | 1.2 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 0.7 m/s² |
| Sound and noise | |
Sound power level, guaranteed (LWA) | 89 dB(A) |
Sound pressure level at operators ear | 76 dB(A) |
