Parts, manuals and support for 130C

All the support you need for 130C. Manuals, spare parts, guides, how-to’s, and more.

Choose your SKU

For more product support please choose your SKU below.

SKU

Support content

Manuals & Documents

(2)

Showing the latest version of manual and documents for 130C. For earlier versions, see link below to search all manuals & documents..

Warranty

All you need to know about Husqvarna’s warranty policy and the service provided by us within the warranty period.

If your product is broken and you wish to claim your warranty, it must always be examined by a dealer.
Find your nearest dealer

You can always contact Husqvarna for general questions about our warranty.
Contact Husqvarna

Specifications

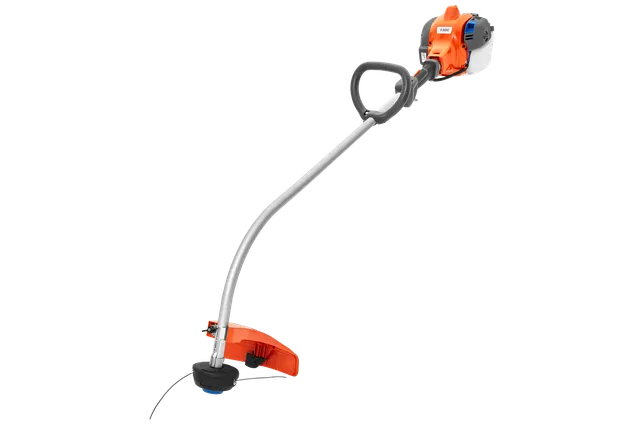

28cc curved shaft trimmer FA,single pack Art no: 970 51 43‑02
Capacity	28cc curved shaft trimmer FA,single pack Art no: 970 51 43‑02
Cutting width	43.18 cm
Engine
Output shaft power	0.7 kW
Cylinder displacement	28 cm³
Maximum rpm output shaft	10,500 rpm
Fuel tank volume	17.82 fl oz (US)
Fuel tank volume	0.53 l
Dimensions
Weight (excl. cutting equipment)	5.13 kg
Tube diameter	24 mm
Product size length	152.4 cm
Equipment
Gear ratio	1
Drive gear angle	0 °
Harness	Not included
Saw blade	Not included
Trimmer head	T25 (L)
Grass blade	Not included
Vibration
Equivalent vibration level (ahv, eq) front handle	4.61 m/s²
Equivalent vibration level (ahv, eq) rear handle	5.65 m/s²
Sound and noise
Sound power level, guaranteed (LWA)	116 dB(A)
Sound pressure level at operators ear	97 dB(A)

Didn't find what you were looking for?

Use our Product Assistant to find support for your Husqvarna products easily. If needed, you are welcome to contact us for further assistance.
