Product Description

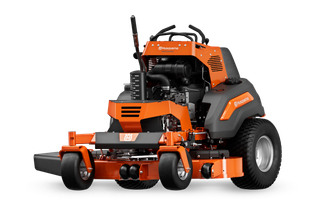

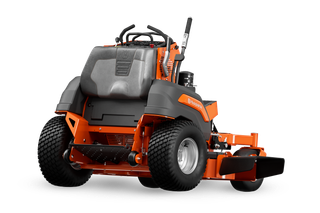

The Husqvarna V500 series stand-on mower represents maximum efficiency in commercial mowing. Providing zero turn capability, rapid mount-dismount, unbeatable maneuvering and ergonomic operation, operators have the best of zero turn and commercial walk behind combined. Heavy duty construction combined with industrial strength drive systems deliver maximum durability in any commercial application.
Product Information
Compare specifications and features with similar Husqvarna products.
CompareV548X Professional Zero Turn Mower SKU: 970 73 39‑01 | |
|---|---|
| Cutting System | V548X Professional Zero Turn Mower SKU: 970 73 39‑01 |
| Cutting width | 122 cm |
| Cutting deck type | 7-gauge fabricated |
| Cutting methods | Collect/Mulch/Side discharge |
| Cutting deck material | Steel |
| Deck thickness | 4.5 mm |
| Cutting height steps | 14 |
| Blade engagement | Electric clutch |
| Blade-tip speed | 94 m/s |
| Blades | 3 pcs |
| Anti-scalp wheels | 3 |
| Nose roller | No |
| Deck lifting system | Manual, foot activated |
| Powder-coated cutting deck | Yes |
| Spindle/mandrel type | Aluminium, commercial |
| Greasable mandrels | Yes |
| Deck Wash Port | No |
| Approval | |
| Homeowner Warranty | 5 Years or 1500 Hours |
| Commercial Warranty | 5 Years or 1500 Hours |
| Capacity | |
| Speed forward max | 16.1 km/h |
| Speed forward min | 0 km/h |
| Dimensions | |
| Base machine, height | 122 cm |
| Base machine, length | 145 cm |
| Base machine, width (chute down) | 157.5 cm |
| Base machine, width (chute up) | 127 cm |
| Weight (complete product w/o side packed articles) | 517.1 kg |
| Drive system | |
| Transmission type | Pump/Wheel motor |
| Transmission manufacturer | Hydro-Gear/Parker |
| Transmission model | HP1/DL |
| Pump displacement | 12 cm³ |
| Fan-cooled pumps | Yes |
| Engine | |
| Motor/engine manufacturer | Kawasaki |
| Engine name | FX Series V-Twin |
| Cylinder displacement | 852 cm³ |
| Cylinders | 2 |
| Engine cooling | Air |
| Air filter type | Heavy-Duty Canister Style |
| Power/fuel type | Gasoline |
| Engine lubrication type | Full pressure with oil filter |
| Oil filter | Yes |
| Fuel tank volume | 26.5 l |
| Fuel tank location | Side (Single) |
| Equipment | |
| Seat material | Vinyl |
| Seat back height | Low |
| Hour meter type | Yes |
| Cup holder | Yes |
| Seat type | Professional |
