Cylinder displacement
Output shaft power1
Chain speed at max power
Product variant
Included
- Chain typeH42
- Bar length (inch)24 in

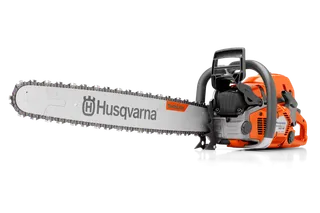

562 XP® GW
Features
Flip-Up Fuel Cap
The flip-up fuel cap is easy to open and close when refueling, even if you are wearing thick gloves.
RevBoost™
Rapid acceleration and higher chain speed for best limbing performance.
LowVib® Technology
Effective LowVib® dampeners absorb vibration, sparing the user’s arms and hands.
Adjustable Oil Pump
Customize and control oil flow to meet any need
Magnesium crankcase
Magnesium crankcase designed for professional use
Quick-Release Air Filter
Easily remove and replace the filter after cleaning
Combined Choke/Stop Control
Provides easier starting and reduces the risk of engine flooding
Side-Mounted Chain Tensioner
Easier access to chain tensioning device
Smart Start® Technology
Specially-designed engine and starter for easy and fast starting with minimum effort
Inertia-Activated Chain Brake
Effective inertia-activated chain brake reduces the likelihood of injury due to kickback.
Retained bar nuts
The retaining function prevents loosing the bar nuts.
Specifications
24" RSN 3/8" 1,5 mm H42 SKU: 966 57 05‑14 | ||
|---|---|---|
| Engine | 24" RSN 3/8" 1,5 mm H42 SKU: 966 57 05‑14 | 562XPGW CHAINSAW US/CAN 20" 3/8 .058 SKU: 967 14 38‑04 |
| Chain speed at max power | 21.3 m/s | 21.3 m/s |
| Cylinder displacement | 59.8 cm³ | 59.8 cm³ |
Output shaft power1 | 3.5 kW | 3.5 kW |
| Equipment | ||
| Recommended bar length, min | 38 cm | 38 cm |
| Pitch | 3/8" | 3/8" |
| Recommended bar length, max | 70 cm | 70 cm |
| Chain type | H42 | |
| Bar length | 60 cm | |
| Bar length (inch) | 24 in | |
| Dimensions | ||
| Weight (excl. cutting equipment) | 6.3 kg | 6.3 kg |
| Sound and noise | ||
| Sound pressure level at operators ear | 106 dB(A) | 106 dB(A) |
| Sound power level, guaranteed (LWA) | 118 dB(A) | 118 dB(A) |
| Vibration | ||
| Equivalent vibration level (ahv, eq) rear handle | 5 m/s² | 5 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 3.2 m/s² | 3.2 m/s² |
| Emission | ||
Exhaust emissions (CO₂ EU V)2 | 777 g/kWh | 777 g/kWh |
Services
Owner support
- 1Output shaft power: Net power rating as per ISO 7293, at specified RPM
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
