1/1
726 cm³
Cylinder displacement
23.1 hp
Engine Power (As rated by the engine manufacturer)1
TS 248TXD

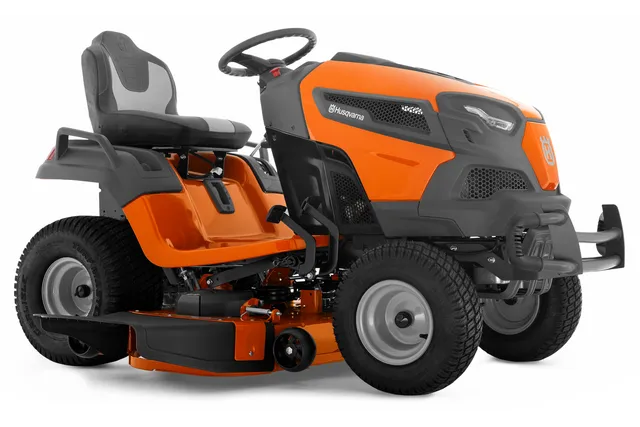

Husqvarna TS 248TXD is a powerful and comfortable side discharge tractor with sturdy ClearCut™ deck and smart, user-friendly design, developed for use in medium- to large-sized gardens. Dual Pedal-operated hydrostatic transmission and cast front axle means easy, trouble-free operation and the locking differential transmission gives superior traction in slippery conditions and slopes. Equipped with 15" deluxe seat, soft rim steering wheel, LED lights and turn key start. Collector and BioClip® kit are available as accessories.
Features
Features
Specifications
Specifications
Compare specifications and features with similar Husqvarna products.
CompareTS 248TXD Art no: 960 41 04‑52 | |
|---|---|
| Cutting deck | TS 248TXD Art no: 960 41 04‑52 |
| Cutting width | 122 cm |
| Cutting height max | 102 mm |
| Cutting height min | 38 mm |
| Nose roller | Yes |
| Anti-scalp wheels | 4 |
| Drive system | |
| Drive method | Dual pedal-operation |
| Speed forward max | 8.4 km/h |
| Speed reverse max | 3.5 km/h |
| Engine | |
| Cylinder displacement | 726 cm³ |
| Motor/engine manufacturer | Kawasaki |
| Engine name | FR Series |
Engine Power (As rated by the engine manufacturer)1 | 23.1 hp |
Engine Power (As rated by the engine manufacturer)2 | 17.2 kW |
| Cylinders | 2 |
| Generator | 15 A |
| Power/fuel type | Petrol |
| Oil filter | Yes |
| Equipment | |
| Seat material | Vinyl |
| Front-End Protection | Brush Guard Style Bumper |
| Hour meter type | Digital with pre-programmed service intervals |
| Seat back height | High 15" |
| Steering wheel type | Deluxe Overmolded |
| Collector | Available as accessory |
| Transmission | |
| Transmission type | Hydrostatic with Automatic Differential Lock |
| Transmission manufacturer | Tuff Torq |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 105 dB(A) |
| Sound pressure level at operators ear | 85 dB(A) |
| Emission | |
Exhaust emissions (CO₂ EU V)3 | 792 g/kWh |
Services
Services
Owner support
Owner support
Manuals, handbooks, spare parts, guides, and related information for TS 248TXD can be found in the product support.
Product support for TS 248TXDDisclaimer:
- 1Engine Power (As rated by the engine manufacturer): Gross power rating as per SAE J1995, at specified RPM
- 2Engine Power (As rated by the engine manufacturer): Gross power rating as per SAE J1995, at specified RPM
- 3Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
